Bearings are important mechanical devices which enable controlled movement and minimal friction amid parts of the machine. However, how can they be so dependable? Its precision engineering is the secret to the perfect design of the internal bearing components, and each has a specific role that contributes to the performance, speed and durability characteristics.
Being applicable in conveyor systems or car engines, as well as manufacturing equipment, knowledge of bearing parts can be useful in the choice of the appropriate type, detection of errors, and enhancement of machine efficiency.
Important Components of Bearing Design The Inner Ring and the Outer Ring
The central part of any bearing composes of the inner ring and outer ring. These rings do not only provide support but are a means through which loads flow and movement takes place.
The inner circle closely fits the rotating shaft but the outer circle is anchored on the housing. Both rings are precisely grounded raceway having the rolling elements that travel with minimal friction.
They work according to the material hardness, and final surface finishing and geometric fitting. The inadequately machined ring or a worn raceway may lead to unequal share of load, vibration, and premature failures, so this component is the key aspect of bearing durability.
Power of Rolling Elements
In between the inner and the outer ring are the rolling elements which help minimize friction by transforming sliding motion to rolling motion. They can be different depending on the bearing type- starting with balls, cylindrical rollers, tapered rollers or even needles.
The rolling elements are in charge of:
- Bearing radially and axially loads
- Minimizing friction caused energy wastage
- Reducing heat generation over time
Its contour and spacing even can reflect, in high-performance industries, robotics, aerospace, efficiency, vibration, and rotational accuracy.
Maintaining Consistency and Stability
The retainer or the bearing cage is made to support the rolling elements and provide spacing in an equal way. It is not meant to support the load, but its purpose cannot be ignored in terms of avoiding internal friction and misalignment.
Cages are fabricated in a variety of material:
- Steel cages: They are strong and durable
- Brass cages: Are anti vibrational and provide smooth running
- Polyamide cages: They are lightweight and are perfect in applications that require low-noise or maximum speed
In the absence of a good cage, the rolling elements can move unbalancedly, cause wear, noise and breakage unexpectedly when load is applied.
Precision-Engineered Raceway Geometry
The ridged rails on both the inner and the outer rings are the raceways through which rolling elements can travel. Such grooves have to be cut to precision - anything a micron out of curve or finish can overwhelm bearing operation.
Raceways affect:
- Bearing distribution of weight
- Rotational smoothness of movement
- Wear and Fatigue resistance
Close tolerance raceways are used in high-speed motors, or hard to wear precision tools, where a smooth operation with low friction is necessary and can extend the service lives under constant stress.

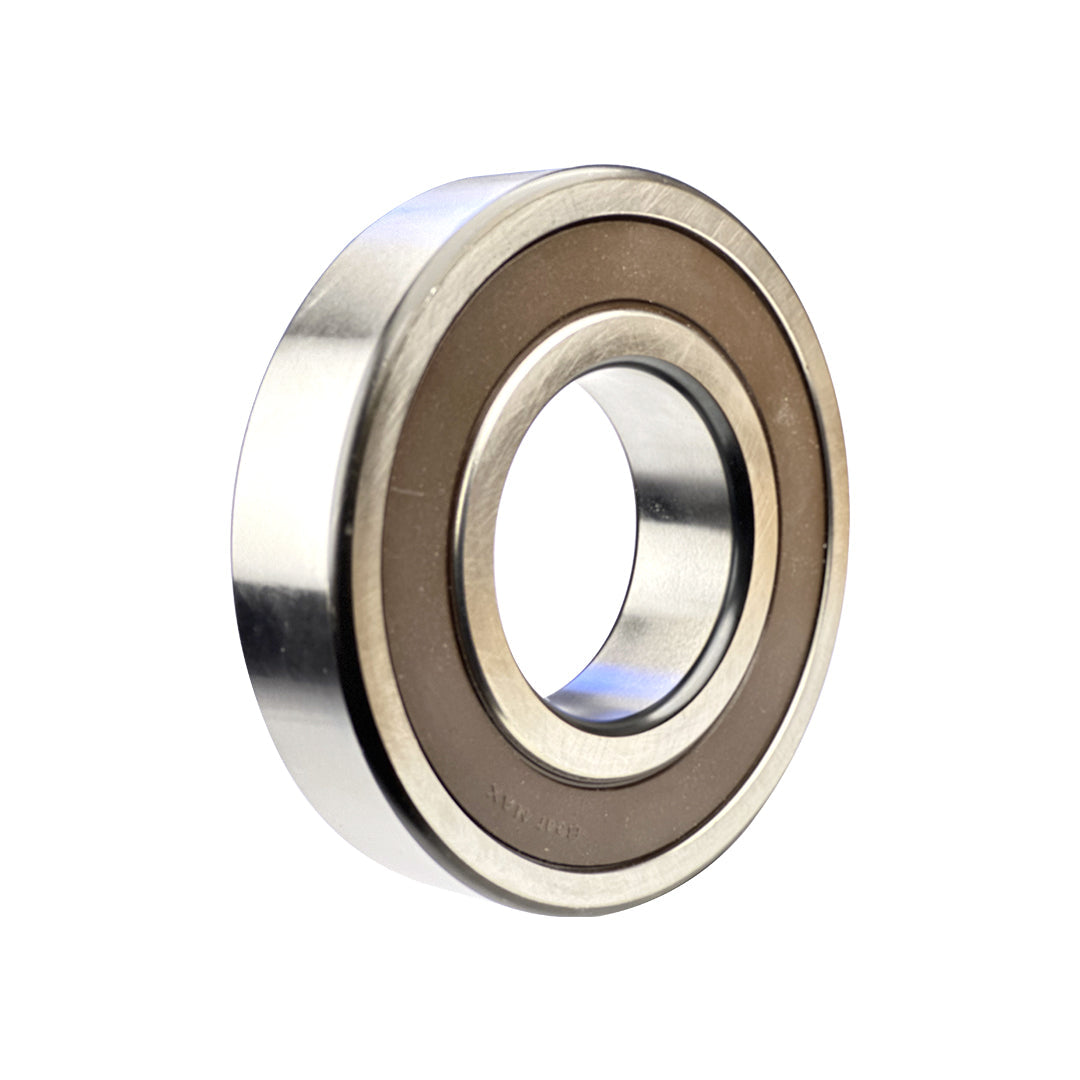

Seal and Shield Systems for Contamination Protection
Both seals and shields are not necessarily found in every bearing system, but when operating in a contaminated setting they are crucial. They prevent dust, dirt, and moisture-dominant factors inside components that are significant causes of a bearing demise.
Typical kinds of protection are:
- Metal Shields (Z-type): Basic large particle shielding, low friction
- Rubber Seals (2RS-type): Good moisture and dust seal
- Contact vs. Non-contact seals: Friction vs sealing ability
Agricultural, construction or marine-related bearing applications are commonly highly dependent on a proper choice of sealing.
Installation and Performance Enhancing Design Features
In addition to essential elements, contemporary bearings can have useful features or increase their performance. Don Tyson never gave much consideration to these integrated additions, nonetheless, they are important.
Examples include:
Snap ring attachment grooves make it easy to position the axial position of the housing and lubrication grooves provides uniform grease or oil coating to the axles. Preloading systems found in high precision bearings, retain no internal play and have better dimensional accuracy, which is critical to CNC machines or robotics.
How Wheel Bearing Parts Knowledge Will Lead You into Making Better Choices
Each of the parts within a bearing; rings, rolling elements, cage, raceways or seals affects directly its performance when put to use. Maintenance professionals and engineers with the knowledge of internal organization are in a better position to:
- Choosing of the appropriate bearing to suit a particular load or environment
- An early warning of failure
- Enhanced machines implementation & energy efficiency
In Bearmax USA, it is not about receiving a durable bearing, but it is about getting a well-designed component handcrafted by masters of their craft to reach industry-level tolerances and having a bearing to withstand high pressures in their environment.
